The User Datagram Protocol (UDP) is one of the core protocols in the Internet Protocol Suite, commonly used for time-sensitive applications where speed is a priority over reliability. Unlike TCP (Transmission Control Protocol), UDP is a connectionless protocol, meaning it doesn’t establish a connection before transmitting data. It sends packets of data to a recipient without ensuring that the recipient is ready or that the packets will arrive in the correct order.
UDP is a lightweight protocol, offering faster communication but with fewer reliability features. It’s often used in applications like online gaming, live streaming, DNS queries, and voice calls, where speed and low-latency communication are essential, even at the cost of some data loss.
What is the UDP Header?
The UDP header is a crucial component of the UDP protocol. Every UDP packet that is transmitted across the network contains a header at the beginning of the packet. The UDP header provides essential information for the proper delivery of data to the correct destination.
When a device sends data using UDP, the header ensures that the data can be routed to the correct port on the recipient’s machine. The header also includes information to check for errors in the transmission.

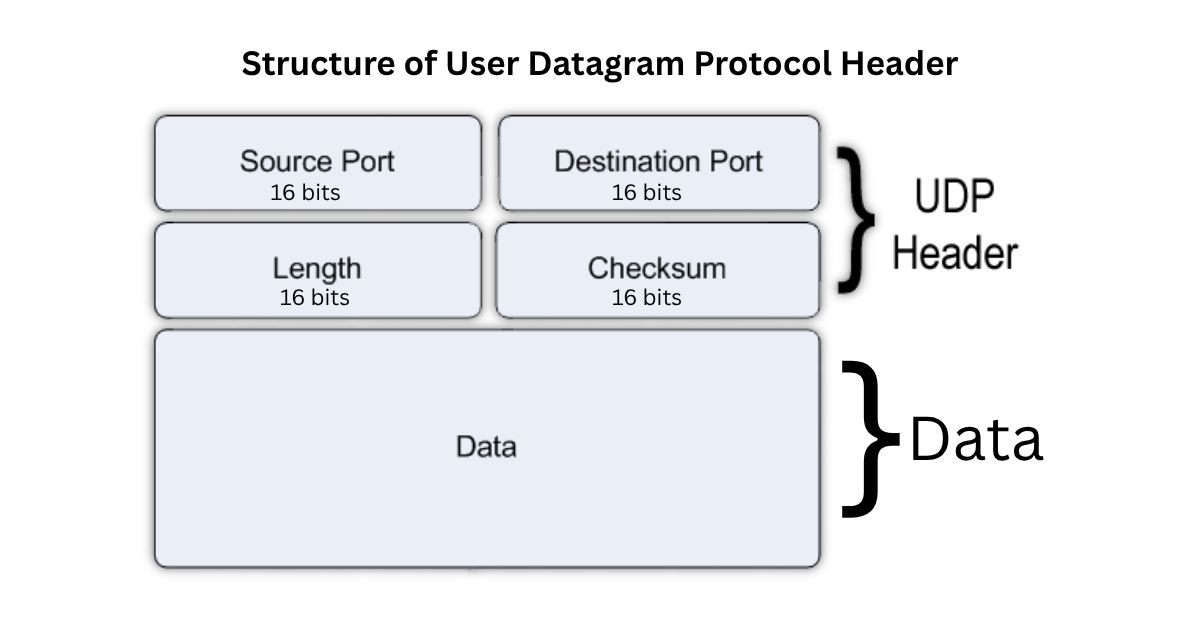

Structure of UDP (User Datagram Protocol) Header
The UDP header is very simple and consists of just four fields, making it efficient and easy to process. The total size of the UDP header is always 8 bytes, regardless of the data being transmitted. Let’s break down these fields in detail:
Source Port and Destination Port
Ports are a fundamental part of UDP communication. They are used to differentiate between multiple services or applications running on the same machine.
- Source Port: When sending data, the source port is typically chosen randomly by the sender unless it’s a well-known application protocol that requires a fixed source port.
- Destination Port: The destination port is often predefined. For instance, DNS typically uses port 53, HTTP uses port 80, and SMTP (email) uses port 25.
Together, the source and destination ports form a “channel” between applications, ensuring the right data reaches the right application on the recipient’s machine.
Length Field in the UDP Header
The Length field in the UDP header is crucial for the receiver to understand how much data it should expect. This field doesn’t only describe the length of the payload (data), but also includes the 8 bytes of the UDP header itself.
For instance, if the length field reads 20 bytes, this means that the entire UDP packet—header plus data—is 20 bytes in size, and the receiver should expect 12 bytes of actual data (20 bytes minus the 8-byte header).
Understanding this field ensures that the receiver doesn’t overrun the buffer when receiving data or leave any data unread.
Checksum in the UDP Header
The Checksum field in the User Datagram Protocol header is used to detect errors that may have occurred during the transmission of the packet.
Here’s how it works:
- The sender calculates a checksum for the data and places it in the UDP header.
- The receiver recalculates the checksum upon arrival of the packet. If the calculated checksum matches the value in the header, the data is considered valid.
- Suppose there’s any discrepancy, such as packet loss or data corruption. In that case, the receiver can discard the packet and request a new one (though in UDP, this isn’t automatically handled by the protocol itself).
The checksum is important because, unlike TCP, UDP doesn’t provide built-in mechanisms to ensure data is delivered correctly or in order. Without the checksum, there’s no way to detect if the data is corrupted.
Check Out | How to Fix “DNS Server Not Responding” Error
Key Differences Between UDP and TCP Headers
Although both UDP and TCP are transport layer protocols used for sending data, their headers differ significantly. Here’s a quick comparison:
UDP (User Datagram Protocol) Header:
- Fixed size: Always 8 bytes.
- Simpler structure: Includes only four fields (source port, destination port, length, and checksum).
- Connectionless: No session or connection establishment before sending data.
TCP (Transmission Control Protocol) Header:
- Variable size: It can range from 20 bytes to over 60 bytes.
- More complex: It includes many more fields, including sequence numbers, acknowledgments, flags, and window size.
- Connection-oriented: Establishes a reliable connection before transmitting data, ensuring the data is received in order.
UDP headers are smaller and simpler, which allows for faster data transmission, but at the cost of reliability.
User Datagram Protocol Advantages and Disadvantages
| Advantages of UDP | Disadvantages of UDP |
|---|---|
| UDP is faster because it doesn’t need to set up a connection. | Data might get lost, and it won’t be resent unless the app handles it. |
| UDP uses fewer control messages, making it lighter. | UDP doesn’t adjust its speed based on network conditions, which can cause congestion. |
| Great for apps needing fast data, like live streaming or gaming. | UDP doesn’t ensure that packets arrive in the right order. |
| UDP is easy to implement and doesn’t need complex handling. | |
| UDP is ideal for sending data to multiple receivers at once. | |
| UDP is a good choice when sending small packets, as it avoids the overhead of connection setup. |
Conclusion
The UDP header is an essential part of the User Datagram Protocol, providing the minimal but vital information needed to transmit data over the network. Its simplicity makes it an excellent choice for applications where speed is crucial, and occasional data loss is acceptable.
While the lack of connection establishment and error recovery mechanisms makes UDP less reliable than TCP, it’s the go-to protocol for applications like streaming, online gaming, DNS, and VoIP, where low-latency communication is more important than guaranteed delivery.
