Configure IPTables to take full advantage of this powerful firewall utility built into the Linux kernel, enabling system administrators to control and filter network traffic. It helps set up, maintain, and inspect IP packet filter rules, effectively securing your Linux server. Configuring IPTables on Linux ensures that your system is protected against unauthorized access and malicious activities while allowing legitimate traffic to flow freely.

In this guide, we will walk you through the process of installing, configuring, and managing IPTables on a Linux server.

Prerequisites

Before you begin configuring IPTables, make sure you have the following:

Linux Distribution: IPTables is available by default in most Linux distributions, including Ubuntu, CentOS, Debian, and RHEL.
Root Access: You need root or sudo access to configure IPTables on your system.
Basic Knowledge of Networking: Understanding IP addresses, ports, and basic firewall concepts will help you configure IPTables effectively.

Once these prerequisites are in place, you’re ready to configure IPTables to secure your Linux server.

Configure IPTables on Linux

Configure IPTables on Linux to control inbound and outbound traffic using customizable firewall rules. IPTables helps secure your server by filtering packets based on IP, port, or protocol, making it essential for protecting Linux-based systems from unauthorized access.

Step 1: Install IPTables

IPTables is usually installed by default on most Linux distributions. However, if it’s missing or you need to reinstall it, follow the steps below.

For Ubuntu/Debian

To install IPTables on Ubuntu or Debian-based systems, use the following command:

sudo apt updatesudo apt install iptables

For CentOS/RHEL

On CentOS or RHEL-based systems, use:

sudo yum install iptables-services

This installs IPTables along with the necessary service management tools.

Step 2: Understand IPTables Basics

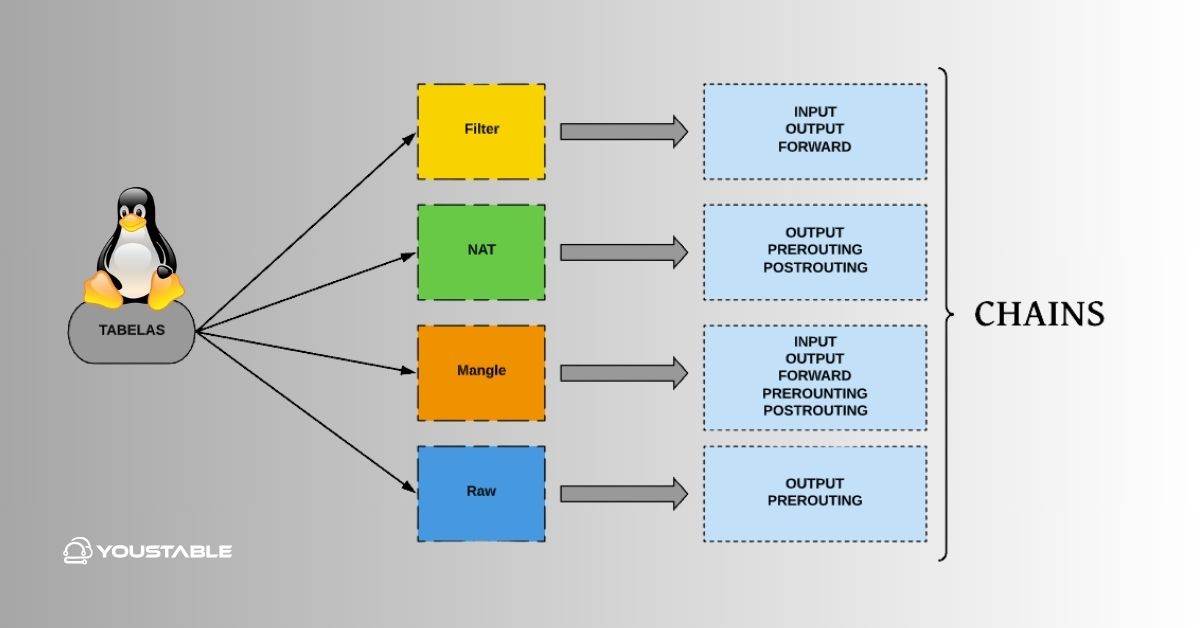

IPTables works by creating chains of rules to filter network traffic. Each chain consists of several rules that match network traffic and apply specific actions (such as accepting or rejecting packets). The default configuration of IPTables includes three built-in chains:

INPUT: Controls incoming traffic.
OUTPUT: Controls outgoing traffic.
FORWARD: Controls traffic that is being routed through the system.

Each chain can have rules to either allow or deny packets based on various conditions like source IP, destination IP, port, and protocol.

Step 3: Configure Basic IPTables Rules

Let’s go through the process of setting up some basic rules to secure your server using IPTables.

View Current Rules

To view the existing rules in your IPTables configuration:

sudo iptables -L

This will list all the current rules in place, as well as the default policies for each chain (ACCEPT or DROP).

Set Default Policies

It’s a good practice to set default policies for each chain to ensure that any traffic not explicitly allowed is blocked. The default policy for the INPUT and FORWARD chains should be DROP, while the OUTPUT chain should be set to ACCEPT (as you typically want your server to initiate outbound connections):

sudo iptables -P INPUT DROP
sudo iptables -P FORWARD DROP
sudo iptables -P OUTPUT ACCEPT

This will block all incoming and forwarded traffic by default, while allowing outgoing traffic.

Allow SSH Access

It’s important to allow SSH traffic (usually on port 22) so that you can manage your server remotely. Run the following command to allow incoming SSH connections:

sudo iptables -A INPUT -p tcp --dport 22 -j ACCEPT

This rule adds an entry to the INPUT chain to allow incoming TCP traffic on port 22 (SSH).

Allow HTTP and HTTPS Traffic

If your server is hosting a website, you’ll need to allow HTTP (port 80) and HTTPS (port 443) traffic. To do so, run the following commands:

sudo iptables -A INPUT -p tcp --dport 80 -j ACCEPT
sudo iptables -A INPUT -p tcp --dport 443 -j ACCEPT

These rules allow incoming TCP traffic on ports 80 and 443 (HTTP and HTTPS).

Allow DNS Queries

If your server needs to resolve domain names, you’ll need to allow DNS traffic (port 53). Run the following command:

sudo iptables -A INPUT -p udp --dport 53 -j ACCEPT

This allows incoming UDP traffic on port 53 for DNS resolution.

Allow ICMP (Ping) Requests

Allowing ICMP requests can help you monitor the server’s availability using ping. To allow incoming ICMP packets, use:

Step 4: Save and Persist IPTables Rules

By default, IPTables rules are not persistent after a reboot. To ensure your rules remain in effect after the system restarts, you need to save the configuration.

On Ubuntu/Debian

Use the iptables-persistent package to save your rules:

sudo apt install iptables-persistent

During installation, you’ll be prompted to save the current rules. Choose “Yes” to save them. If you need to manually save the rules, use:

sudo netfilter-persistent save

On CentOS/RHEL

On CentOS/RHEL, you can use the service iptables save command to save the rules to a configuration file:

sudo service iptables save

This saves the current configuration to /etc/sysconfig/iptables.

Start IPTables on Boot

To ensure that IPTables starts automatically on boot:

On Ubuntu/Debian:

sudo systemctl enable netfilter-persistent

On CentOS/RHEL:

sudo systemctl enable iptables

Step 5: Manage IPTables Rules

Once you’ve configured basic rules, you can manage and modify your firewall as needed. Here are some useful commands for managing IPTables:

List Current Rules

To list the current rules:

sudo iptables -L

Delete a Rule

To delete a specific rule, use the -D option. For example, to delete the rule allowing HTTP traffic on port 80:

sudo iptables -D INPUT -p tcp --dport 80 -j ACCEPT

Flush All Rules

To remove all rules and reset IPTables to its default state:

sudo iptables -F

Delete a Specific Chain

To delete a specific chain:

sudo iptables -X <chain_name>

Step 6: Monitor and Test IPTables

After configuring IPTables, it’s important to monitor its performance and test that it is working as expected.

Test Firewall Rules

After configuring IPTables, you can test the firewall rules by trying to access your server from different sources. For example:

Try accessing your server’s SSH port (port 22) from a remote machine.
Try to visit the website (HTTP/HTTPS) in a browser.
Use ping to test ICMP responses.

Check the Logs

To monitor the firewall logs for any issues or blocked traffic, check the syslog (Ubuntu/Debian) or the dedicated firewall log (CentOS/RHEL):

Ubuntu/Debian:

sudo tail -f /var/log/syslog | grep iptables

CentOS/RHEL:

sudo tail -f /var/log/messages | grep iptables

Conclusion

In this guide, we’ve covered how to configure IPTables on Linux, from installing and configuring basic rules to saving the configuration and ensuring persistence. IPTables is a powerful tool for managing traffic to and from your Linux server, providing flexibility in how you secure your system.

By following this guide, you can create a robust firewall for your server, allowing only the necessary traffic while blocking unwanted or malicious connections. Regular monitoring and updates to your IPTables configuration will ensure that your server remains secure.
